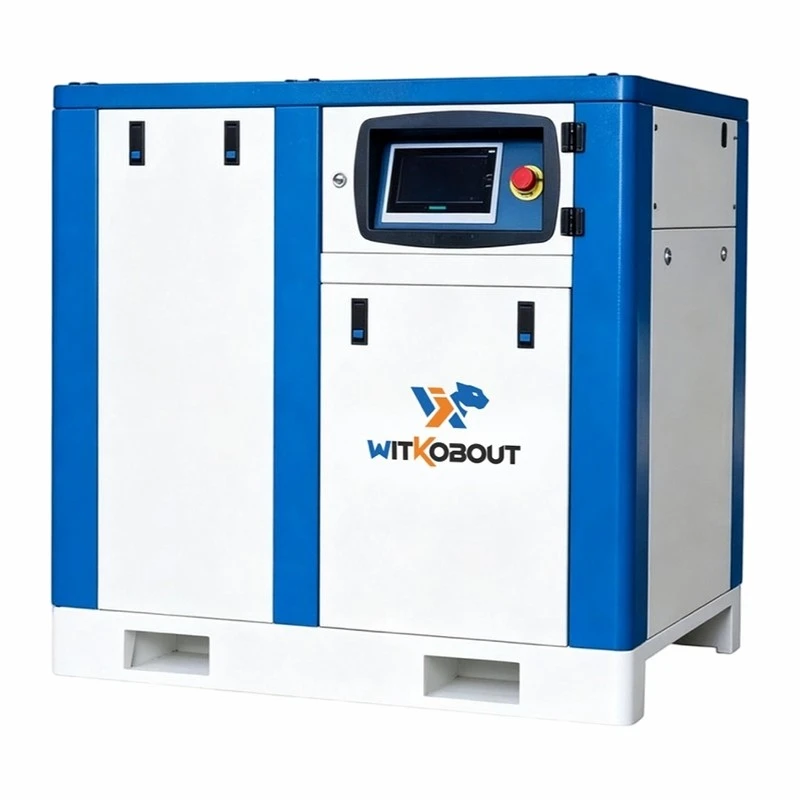

Single Stage Screw Air Compressor

The Single Stage Screw Air Compressor is intended for facilities that want rotary-screw air delivery without the added complexity of a multi-stage compression arrangement. Air is compressed through one screw stage, creating a practical package for common plant-pressure duties when the required airflow and operating pressure fall within the selected model's range.

Typical users include woodworking plants, component assembly lines, printing operations, fabrication shops and packaging areas that run several pneumatic devices from a shared header. System design should begin at the points of use: identify the pressure needed by the most demanding equipment, calculate coincident airflow, then allow for distribution losses rather than automatically choosing a higher compressor setpoint. Receiver capacity can absorb short peaks, and the dryer and filter train should be selected from the actual moisture and cleanliness target. Site preparation should address ventilation, service clearances, electrical protection and a drain route for collected condensate. During operation, trend discharge temperature, loading pattern and pressure at the far end of the network; changes can reveal blocked coolers, leakage or undersized piping. Quotation information should include the demand profile, working pressure, voltage, ambient conditions, treatment requirement and available installation footprint.

Compared with a poorly matched package, Single Stage Screw Air Compressor provides low-pulsation airflow suited to extended operating periods. For the operator, the result is an easier way to keep shared pneumatic equipment supplied more consistently. This design choice is valuable across shared air networks, packaging plants and metal processing.

Describe your intended market and the paperwork you need. To enable your purchasing team to assess their scope before to placing an order, get confirmation of the documents accessible for the chosen model.

Start by determining the pressure, airflow, operation hours, and power supply that you need. In order to analyze compressor selection, receiver capacity, and air treatment requirements collectively, please provide your equipment specs.
