Hangzhou Witkobout Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 100hp pm vsd screw air compressor in China. If you're going to buy advanced 100hp pm vsd screw air compressor, welcome to get quotation from our factory. All customized products are with high quality and competitive price.

Specification

The following is a verified reference configuration from the PM VSD Screw Air Compressor Technical Parameters. Final selection should be confirmed against the required airflow, pressure, voltage and site conditions.

Reference model: SA-100HP
Power (KW): 75
Horsepower (HP): 100
Air Displacement/Pressure: 13.3/0.7; 13.0/0.8; 10.9/1.0; 9.8/1.2
Air Outlet Size: DN50
Noise dB (A): 74±2
Driven Method: Direct Driven
Type: PM VSD
Start Method: Variable Frequency Start
Length (mm): 1600
Width (mm): 1250

Benefits

100HP PM VSD Screw Air Compressor supports efficient plant planning by providing better part-load control and less avoidable unloaded running. It can therefore align power use with the actual air requirement without adding avoidable system complexity. The advantage is most visible in electronics assembly, laser cutting support and paint preparation.

Product Specifications

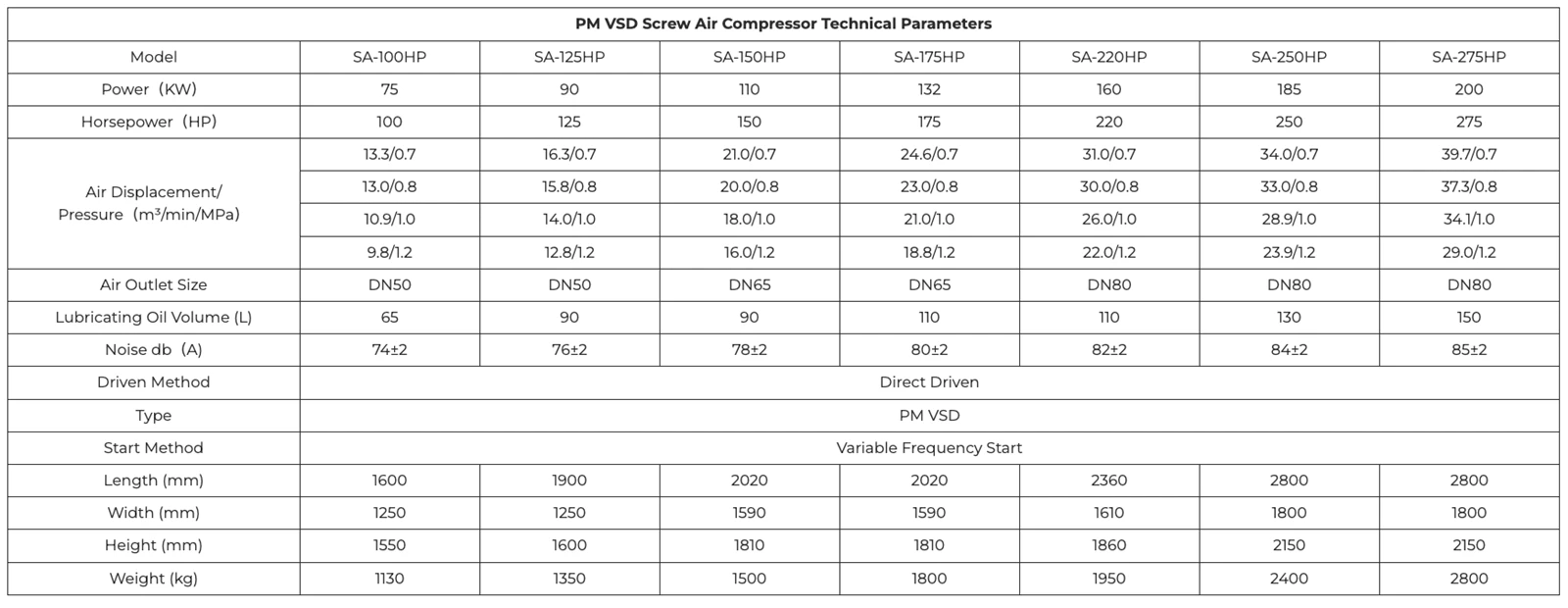

product-1743-675

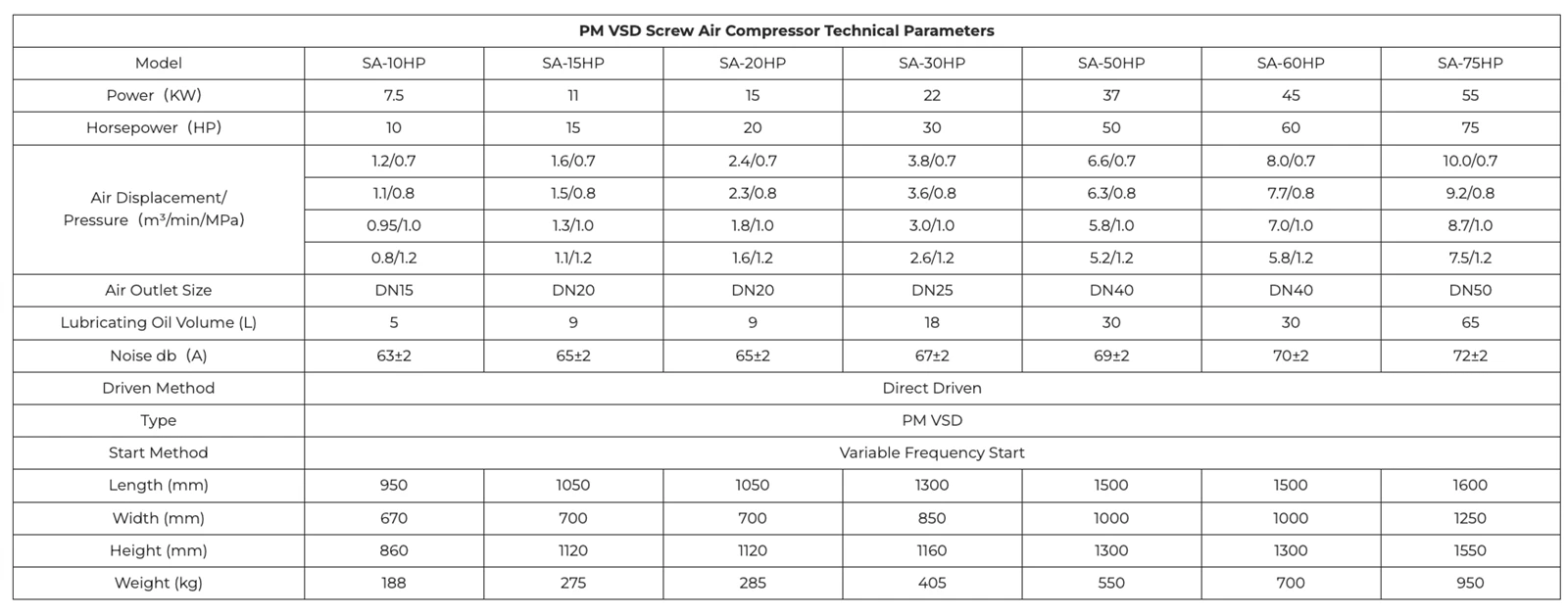

product-1748-685

More Application Cases

100HP PM VSD Screw Air Compressor can support shared air networks, packaging plants, metal processing, pneumatic controls and food packaging with suitable treatment when correctly sized.

Quality criteria Defined Prior to Production

Before placing an order, make sure that important specifications and inspection criteria are in line. Talk about any inspection records needed for your purchase, as well as the relevant inspections for assembly, operation, pressure performance, leakage, and electrical safety.

Planning for Delivery and Services

As part of your quote, confirm the packing, shipping schedule, spare parts, and service terms. Before completing your purchase, find out about the available operating documentation, technical assistance, and warranty coverage.

FAQ

Q: What is a permanent-magnet VSD screw air compressor?

A: It combines a permanent-magnet motor with variable-speed drive technology. The system adjusts compressor output according to real-time demand, helping maintain stable pressure and reduce unnecessary unloaded operation.

Q: Can you do OEM and ODM?

A: Yes, we support both OEM and ODM projects. Materials, colors, styles, and other details can be customized according to your requirements. The applicable minimum order quantity will be confirmed after we discuss the project specifications.

Q: Which shipping way can you provide?

A: Depending on your requirements, we can arrange shipment by sea, air, express courier, or another suitable delivery method.
